Specification
|
Wavelength |
810nm±10 |
Operation Current |
＜1000mA |
|
100-500 mw |
Operational mode |
Continue/pulse(10Hz) |
|
|
Time set |
10-20 minutes |
Supply voltage |
110V -240V/±50Hz |
|
Laser probe size |
Φ37×140 mm |
Machine size |
190×135×60(mm) |
|
Package size |
290×205×90(mm) |
Laser class |
ⅢB |
|
Net Weight |
0.85kg |
Gross weight |
1.6kg |
Principle
we can control the pain relief through endorphin or serotonin release simply by changing the pulse frequency of laser.
AApplication
Suitable for a variety of sports injuries ,Thigh muscle strain ,Ankle sprains, Arthritis knee. Arthritis-Shoulde, Periarthritis Humeroscapularis, Osteoarthritis of the knee, Chronic and acute pain syndromes , Cervical pain ,Back pain, Elbow pain and so on.

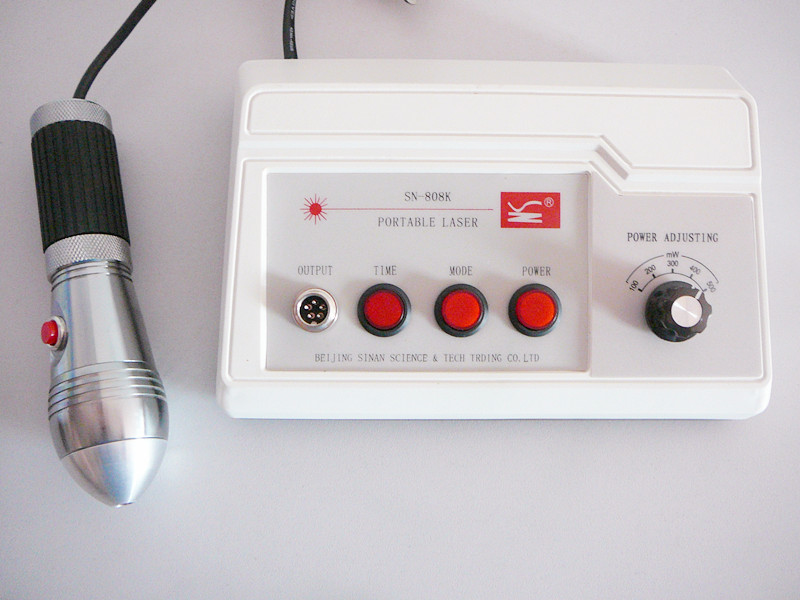

Operation
1. Put the plug into electric socket of 110V-240V .
2.Take the Plug of the laser to the interface socket of the Machine
3. Press the power button , red lamp on panel is light.
4. Mode Choose : press up --- laser works continuous wave
press put down--- laser works pulse wave.
5. Press again the red button on Handy probe, the laser works .
6. The Buzzer will be interrupted tone… tone when laser works.
7. Operational Mode : Change mode button to continuous and pulse .
8. Power Adjusting : 100mW、200mW、300mW、400mW、500mW.
